Event Broadcast Widget Guide
Description of the Situation
SmartPlayer has developed a widget that allows users to control a broadcast and the events within it using buttons on touch screens. This widget makes it possible to create control elements (buttons) to which reactions and events can be assigned. The configured widget can be used as a remote control for managing a broadcast.
Adding the Widget to the Personal Account
To add this widget to the personal account, the user must request the archive containing the widget from a SmartPlayer technical support specialist. It will be provided as a ZIP archive.
After that, the user must log in to the personal account and navigate to the Content section.

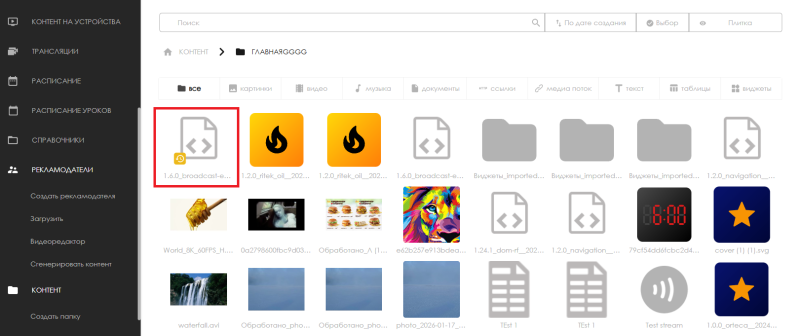

In the Content section, the widget must be transferred from local storage to the personal account. Once the user uploads the widget, it will appear in the content list.
Widget Main Page

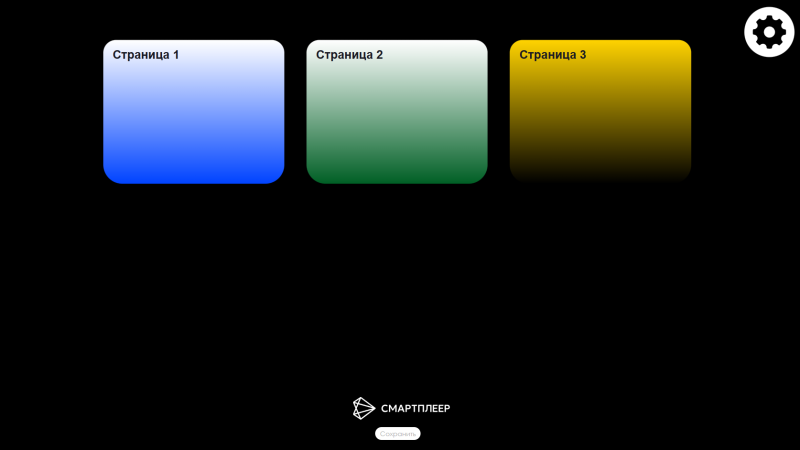

After transferring the widget to the personal account, the user must double-click the widget icon to perform the initial configuration. The widget's main page will then open.

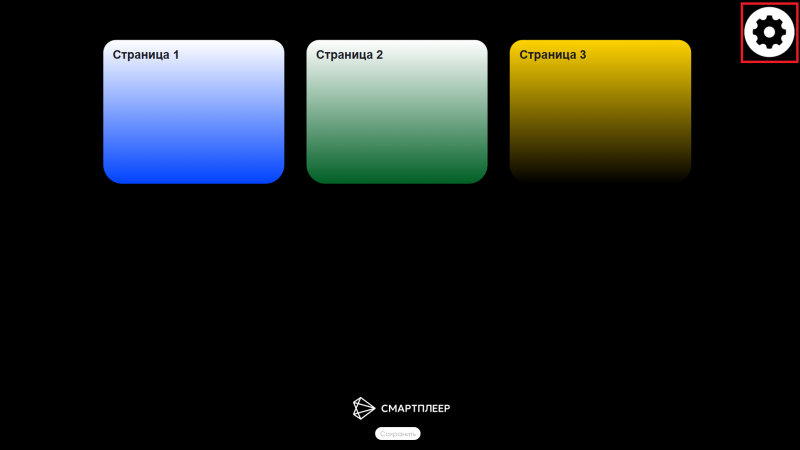

On the widget's main page, the user can click the gear icon to open the widget settings.
The "Settings" Button

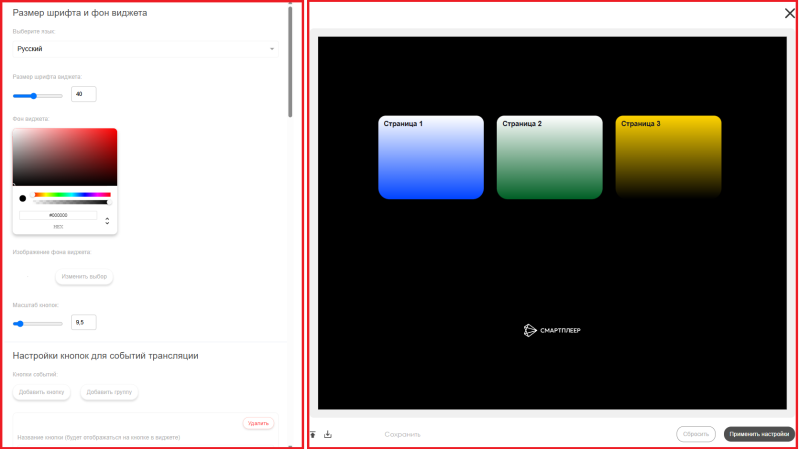

After opening the widget settings, the user will see a list of configurable parameters on the left side of the screen. The right side contains the widget preview area, where all changes are displayed.
The widget settings include the following parameters:
- Language Selection — allows the user to choose one of the available interface languages. The following languages are available: Russian, English, Portuguese, Spanish, and Kazakh;
- Widget Font Size — allows the user to set the text font size using a slider or a numeric value;
- Widget Background — allows the user to select the widget background color using a color palette. The color can also be specified using a HEX code selected from any publicly available color palette;
- Widget Background Image — allows the user to select an image using the Select Image button. The required image must first be uploaded to the SmartPlayer personal account;
- Button Scale — allows the user to set the size of the buttons created in the widget using a slider or a numeric value;
- Button Type — allows the user to choose the button appearance. Two options are available: square corners or rounded corners;
- Add Button — adds a clickable button to the widget;
- Add Button Group — adds a button that can contain other buttons and expand when pressed.
Configuring Buttons for Broadcast Events
Clicking the Add Button or Add Button Group buttons changes the widget interface and displays additional settings specific to each option.
Add Button
After clicking the Add Button button, the widget settings interface changes.
To configure the added button, the user must specify the following parameters:
- Button Name — specify the button label;
- Broadcast Identifier — specify the ID of the broadcast associated with the button. The ID can be copied from the browser address bar while viewing an existing broadcast;
- Event Name — a fixed parameter. By default, the event name is label;
- Event Value — specify the event value configured in the broadcast settings;
- Button Image — after clicking the Select Image button, the user must select an image for the button from the SmartPlayer personal account. It is recommended to upload the image in advance.
Add Button Group
After clicking the Add Button Group button, the widget settings interface changes.
To configure the newly added button group, the user must specify the following parameters:
- Group Name — specify the group name;
- Button Image — after clicking the Select Image button, the user must select an image from the SmartPlayer personal account. It is recommended to upload the image in advance;
- Add Button — adds the button settings described in the previous section. These settings must be configured. The newly added button will become part of the group.
Completing the Widget Configuration
After configuring the widget, the user must click the Apply Settings button in the lower-right corner of the screen.
The widget will then expand to full screen, and the user must click the Save button located at the bottom center of the screen.
Importing and Exporting Settings
While working with the widget settings, the user can upload previously saved settings or download the current widget configuration. Each action is performed using a separate icon in the widget interface. These icons are located at the bottom center of the widget.
Server Logic
When configuring the widget, buttons, or button groups, the user defines the parameters that the SmartPlayer server application responds to. The SmartPlayer server application responds to the following parameters:
- broadcast identifier;
- event name;
- event value.
When the widget is configured correctly, every touch interaction will cause the server application to perform the assigned action, such as switching to another content page.
Adding the Configured Widget to a Broadcast
To fully understand how this functionality works, the user must launch a scheduled broadcast and add this widget as content. Detailed information about creating broadcasts and schedules is available in the following SmartPlayer Wiki articles:
- Раздел "Устройства"
- Раздел "Контент на устройства"
- Раздел "Трансляции"
- Раздел "Расписание"
- Подключения и интеграция в SmartPlayer c использованием серверных событий
Video Tutorial
Event Broadcast Widget Guide (Event Broadcast)
Additional Information

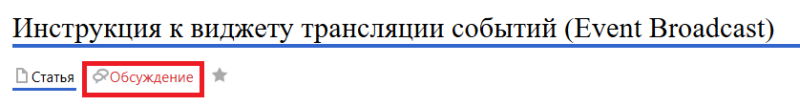

If this article does not help you use the functionality as intended or if you still have questions after reading it, you can ask them in the Discussions section at the top of the page.
Additional information is also available on the page Как взаимодействовать пользователю с разделом "Обсуждения".
